| 序号
Item Number | 规格
Diameter | 12H标准产能(kg）
12Hours tandard capacity(kg） | 常用规格收线盘型及最大装盘量(kg)\Packing |
| 250" | 400" |
| 1 | 7/0.08mm | 10 | 23 | 80 |
| 2 | 7/0.10mm | 16 | 23 | 80 |
| 3 | 7/0.12mm | 23 | 23 | 80 |
| 4 | 7/0.127mm | 26 | - | 80 |
| 5 | 7/0.13mm | 27 | - | 80 |
| 6 | 7/0.16mm | 36 | 23 | 80 |
| 7 | 7/0.18mm | 40 | - | 80 |
| 8 | 7/0.20mm | 56 | - | 80 |
| 9 | 7/0.23mm | 65 | - | 80 |
| 10 | 7/0.254mm | 91 | - | 80 |
| 11 | 7/0.32mm | 126 | - | 80 |
| 12 | 7/0.37mm | 168 | - | 80 |
| 13 | 7/0.38mm | 178 | - | 80 |
| 14 | 7/0.40mm | 197 | - | 80 |
| 15 | 19/0.20mm | 134 | - | 80 |
| 16 | 19/0.254mm | 185 | - | 80 |
注：上表数据适用于裸绞镀和镀绞镀导体!

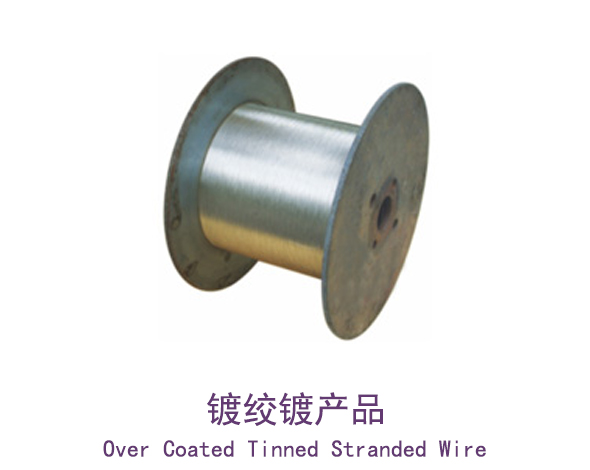

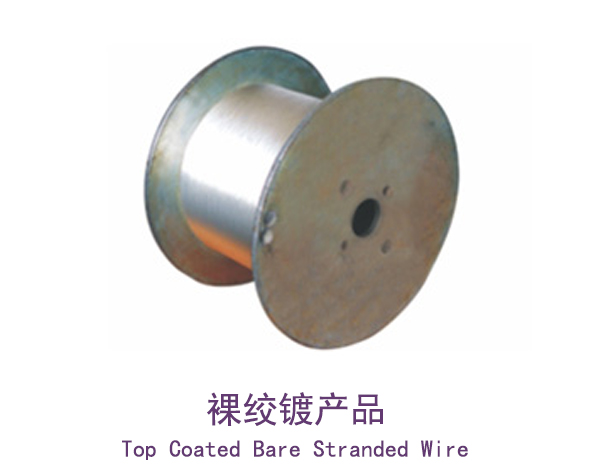

Note:Figures in above form are vaild for top coated bare stranded wire and over coated tinned stranded wire
| 型号
Description | 线规号
Wire gauge | 结构(mm)
Construction | 截面积(mm2)
Corse Section | 常用盘型
Packing | 线规号
Wire gauge | 结构(mm)
Construction | 截面积(mm2)
Corse Section | 常用盘型
Packing |
|

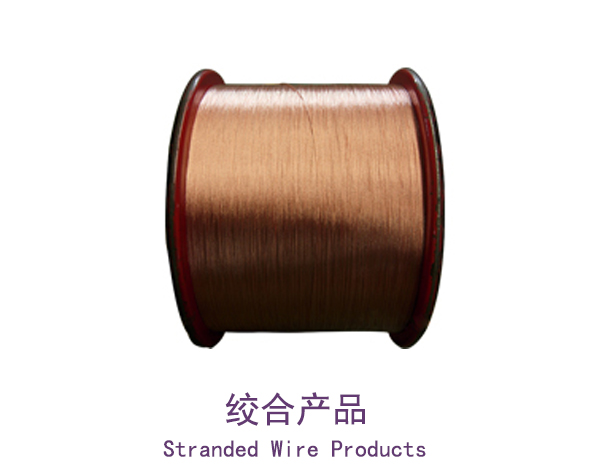

| TXJ/TRJ | 36 | 7/0.05 | 0.01 | 355"/300" | 18 | 7/0.4 | 0.88 | 500"/630" |
| 7/0.07 | 0.026 | 355"/300" | 19/0.254 | 0.96 | 500"/630" |
| TXJ/TRJ | 32 | 7/0.08 | 0.03 | 400" | 41/0.16 | 0.82 | 500" |
| TXJ/TRJ | 30 | 7/0.10 | 0.05 | 400" | 32/0.20 | 1 | 500"/630" |
| TXJ/TRJ | 28 | 16/0.064 | 0.05 | 400" | 16 | 19/0.29 | 1.25 | 500"/630" |
| 10/0.10 | 0.08 | 400" | 19/0.3 | 1.34 | 500"/630" |
| 7/0.127 | 0.09 | 400" | 26/0.26 | 1.38 | 500"/630" |
| 19/0.08 | 0.1 | 400" | 54/0.18 | 1.37 | 500"/630" |
| TXJ/TRJ | 26 | 7/0.14 | 0.11 | 400" | 7/0.50 | 1.37 | 500"/630" |
| 10/0.12 | 0.113 | 400" | 37/0.254 | 1.87 | 500"/630" |
| 7/0.15 | 0.123 | 400" | 14 | 37/0.26 | 1.96 | 500" |
| 50/0.18 | 1.27 | 500"/630" | 26/0.32 | 2.09 | 500"/630" |
| 7/0.16 | 0.14 | 400"/500" | | 35/0.32 | 2.81 | 500" |
| 19/0.10 | 0.15 | 400" | 12 | 37/0.32 | 2.97 | 500" |
| 30/0.08 | 0.15 | 400" | 65/0.254 | 3.3 | 500"/630" |
| 41/0.064 | 0.132 | 400" | 65/0.26 | 3.45 | 500"/630" |
| 50/0.20 | 1.57 | 500"/630" | 11 | 28/0.45 | 4.45 | 500"/630" |
| TXJ/TRJ | 25 | 7/0.18 | 0.18 | 400" | 10 | 37/0.4 | 4.65 | 500"/630" |
| TXJ/TRJ | 24 | 7/0.20 | 0.22 | 400"/500" | 66/0.32 | 5.3 | 500"/630" |
| 19/0.127 | 0.24 | 400"/500" | 84/0.30 | 5.93 | 500"/630" |
| 11/0.16 | 0.22 | 500" | 9 | 44/0.45 | 6.99 | 500"/630" |
| 65/0.064 | 0.21 | 500"/630" | 7/37/0.2 | 8.13 | 500"/630" |
| 105/0.051 | 0.214 | 500"/630" | 7/27/0.254 | 8.51 | 500"/630" |
| 50/0.26 | 2.65 | 500"/630" | 8 | 55/0.45 | 8.74 | 500"/630" |
| TXJ/TRJ | 23 | 60/0.08 | 0.3 | 500"/630" | 77/0.396 | 9.48 | 500"/630" |
| 7/0.23 | 0.29 | 400"/500" | 133/0.30 | 10.69 | 500"/630" |
| 7/0.254 | 0.35 | 500"/630" | 7/50/0.18 | 8.9 | 500"/630" |
| TXJ/TRJ | 22 | 7/0.26 | 0.37 | 500"/630" | 7 | 7/65/0.18 | 11.57 | 500"/631" |
| 17/0.16 | 0.34 | 500" | 6 | 88/0.45 | 13.99 | 500"/630" |
| 105/0.064 | 0.338 | 500"/630" | 7/84/0.18 | 14.96 | 500"/630" |
| 28/0.15 | 0.49 | 400"/500" | 5 | 7/104/0.18 | 18.52 | 500"/630" |
| 10/0.254 | 0.51 | 400"/500" | 4 | 7/20/0.45 | 22.25 | 500"/630" |
| 19/0.19 | 0.54 | 400"/500" | 3 | 7/168/0.18 | 29.91 | 500"/630" |
| TXJ/TRJ | 20 | 7/0.32 | 0.56 | 400"/500" | | 7/60/0.32 | 33.76 | 500"/630" |
| 19/0.203 | 0.61 | 400"/500" | 1 | 19/30/0.32 | 45.82 | 500"/630" |
| 26/0.16 | 0.52 | 400" | | | | |
| 19/0.23 | 0.79 | 500"/630" | | | | |
| 16/0.254 | 0.81 | 500"/630" | | | | |
| 19/0.24 | 0.86 | 500"/630" | | | | |
注：收线盘型及装盘标准:300"(355")/25kg,400"/70kg,500"/150kg,630/250kg
Note:Packing and net weight:300"(355")/25kg,400"/70kg,500"/150kg,630/250kg
| 产品类型
Type | 原材料
Material | 线规/Wire gauge | 结构
Number of Strands |
| AWG | mm | INCHES |

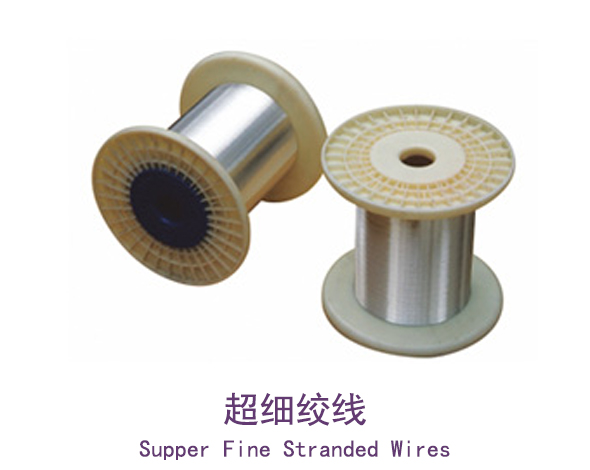

| Stranded Wires | Ag-Cu Alloy.Sn-Cu Alloy With Bare or Silver Plated | 50 | 0.0098 | 0.0004 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated | 48 | 0.012 | 0.0005 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated | 46 | 0.016 | 0.0006 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated | 45 | 0.018 | 0.0007 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 44 | 0.02 | 0.0008 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 42 | 0.025 | 0.0010 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 40 | 0.031 | 0.0012 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 38 | 0.037 | 0.0015 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 38 | 0.04 | 0.0016 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 38 | 0.042 | 0.0017 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 36 | 0.049 | 0.0019 | 7 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 38 | 0.037 | 0.0015 | 19 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 42 | 0.025 | 0.0010 | 19 |
| Stranded Wires | Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated | 38 | 0.04 | 0.0016 | 40 |
Ag-Cu Alloy.Sn-Cu Alloy With Bare or Silver Plated 银铜合金、锡铜合金（可镀银）
Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated 纯铜、银铜合金、锡铜合金（可镀银）
Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated 纯铜、银铜合金、锡铜合金（可镀银、镀锡）
