管式退火生产方式:Tubular Anneal

型号/Description	线规/Wire Gauge			12H标准产能(kg) 12Hours standard capacity(kg)	常用规格收线盘型及最大装盘量(kg)\Packing
型号/Description	AWG	mm	INCHES	12H标准产能(kg) 12Hours standard capacity(kg)	3"	5"	8"	9"	250"
TX/TR	44	0.05	0.0020	100	2.3	5	10	-	-
TX/TR	40	0.08	0.0031	308	2.3	5	10	15	-
TX/TR	38	0.10	0.1140	502	2.3	5	10	15	25
TX/TR	36	0.127	0.005	810	2.3	5	10	15	25
TX/TR	34	0.16	0.0063	1183	2.3	5	10	15	25
TX/TR	33	0.18	0.0071	1172	2.3	5	10	15	25
TX/TR	32	0.20	0.0080	1286	2.3	5	10	15	25
TX/TR	30	0.254	0.0100	1633	2.3	5	10	15	25
TX/TR	28	0.32	0.0126	2058	-	5	10	15	25
TX/TR	26	0.40	0.0159	2412	-	-	10	15	25
TX/TR	25	0.45	0.0179	2849	-	-	10	15	25
TX/TR	24	0.511	0.0201	3100	-	-	10	15	25

拉丝连续退火生产方式：Continuous Drawing Anneal

型号/Description	线规/Wire Gauge			12H标准产能(kg） 12Hours tandard capacity(kg）	常用规格收线盘型及最大装盘量(kg)\Packing
型号/Description	AWG	mm	INCHES	12H标准产能(kg） 12Hours tandard capacity(kg）	3"	5"	8"	9"	250"
TX/TR	26	0.405	0.016	835	100	180	350	-	20
TX/TR	24	0.511	0.02	1175	100	180	350	-	20
TX/TR	22	0.643	0.025	1760	100	180	350	-	20
TX/TR	20	0.813	0.032	1900	100	180	350	-	20
TX/TR	18	1.02	0.04	2450	100	180	350	-	20
TR	13	1.83	0.072	9000	-	-	-	1500	-
TR	12	2.05	0.081	12000	-	-	-	1500	-
TR	10	2.6	0.102	18000	-	-	-	1500	-

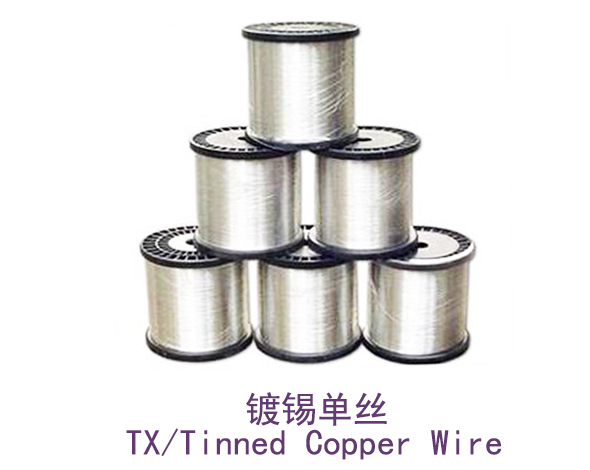

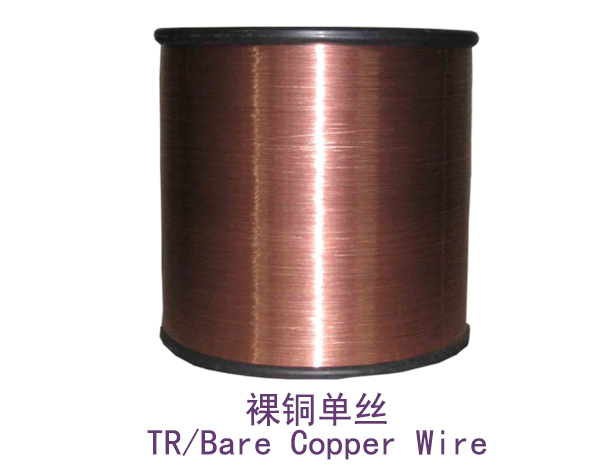

注：TX代表镀锡铜单丝，TR代表裸铜丝单丝。

Note:'TX'stands for Tinned copper wire, 'TR'stands for bare copper.

镀银单丝：Silver Plated Single Wire

型号/Description	规格/Specifications	12H标准产能(kg） 12Hours tandard capacity(kg）	常用规格收线盘型及最大装盘量(kg)\Packing
型号/Description	规格/Specifications	12H标准产能(kg） 12Hours tandard capacity(kg）	3"	5"	8"	9"	250"
TRY	0.05mm	100	2.3	5	10	-	-
TRY	0.08mm	308	2.3	5	10	15	-
TRY	0.10mm	502	2.3	5	10	15	23
TRY	0.12mm	724	2.3	5	10	15	23
TRY	0.127mm	835	2.3	5	10	15	23
TRY	0.16mm	1183	2.3	5	10	15	23
TRY	0.18mm	1172	2.3	5	10	15	23
TRY	0.20mm	1286	2.3	5	10	15	23
TRY	0.25mm	1426	-	5	10	15	23
TRY	0.30mm	1809	-	5	10	15	23
TRY	0.361mm	2216	-		10	15	23
TRY	0.40mm	2090	-	-	10	15	23
TRY	0.45mm	2849	-	-	10	15	23
TRY	0.52mm	3261	-	-	10	15	23
TRY	0.68mm	4182	-	-	10	15	23

镀镍单丝：Nickel Plated Copper Wire

型号/Description	规格/Specifications	12H标准产能(kg） 12Hours tandard capacity(kg）	常用规格收线盘型及最大装盘量(kg)\Packing
型号/Description	规格/Specifications	12H标准产能(kg） 12Hours tandard capacity(kg）	3"	5"	8"	9"	250"
TRN	0.05mm	100	2.3	5	10	-	-
TRN	0.08mm	308	2.3	5	10	15	-
TRN	0.10mm	502	2.3	5	10	15	23
TRN	0.12mm	724	2.3	5	10	15	23
TRN	0.127mm	835	2.3	5	10	15	23
TRN	0.16mm	1183	2.3	5	10	15	23
TRN	0.18mm	1172	2.3	5	10	15	23
TRN	0.20mm	1286	2.3	5	10	15	23
TRN	0.25mm	1426	-	5	10	15	23
TRN	0.30mm	1809	-	5	10	15	23
TRN	0.35mm	2216	-		10	15	23
TRN	0.40mm	2090	-	-	10	15	23
TRN	0.45mm	2849	-	-	10	15	23
TRN	0.52mm	3261	-	-	10	15	23
TRN	0.68mm	4182	-	-	10	15	23

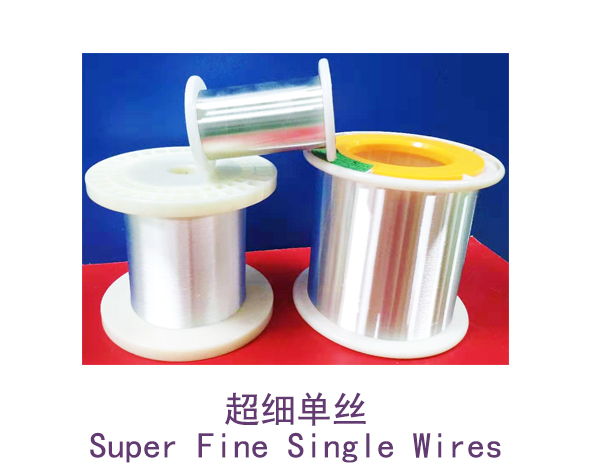

超细单丝：Super Fine Single Wires

产品类型 Type	原材料 Material	线规/Wire Gauge			12H标准产能(kg） 12Hours tandard capacity(kg）
产品类型 Type	原材料 Material	AWG	mm	INCHES	12H标准产能(kg） 12Hours tandard capacity(kg）
Single Wires	Ag-Cu Alloy.Sn-Cu Alloy With Bare or Silver Plated	58	0.0098	0.0004	0.245
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated	56	0.012	0.0005	0.435
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated	54	0.016	0.0006	1.16
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	53	0.018	0.0007	1.76
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	52	0.02	0.0008	2.01
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	50	0.025	0.001	3.67
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	48	0.031	0.0012	6.08
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	47	0.033	0.0013	6.57
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	46	0.037	0.0015	9.45
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	46	0.04	0.002	10.13
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	46	0.042	0.0017	10.64
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	45	0.044	0.0017	12.26
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	44	0.049	0.0019	15.2
...		…	…		...
Single Wires	Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated	20	0.813	0.032	500

Ag-Cu Alloy.Sn-Cu Alloy With Bare or Silver Plated 银铜合金、锡铜合金(可镀银)

Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver Plated 纯铜、银铜合金、锡铜合金(可镀银)

Pure Coper,Ag-Cu Alloy,Sn-Cu Alloy With Bare or Silver or Tin Plated 纯铜、银铜合金、锡铜合金(可镀银、镀锡)

铜包铝镁合金单丝：Copper Clad Aluminium Magnessium Alloy Wire

型号 Description	Dia.(mm)	tensile strength M p a		Elongation%
型号 Description	Dia.(mm)	H类别 H class(min)	A类别 A class(max)	H类别 H class(min)	A类别 A class(max)
CCAM	0.1	205	172	1.0	5
CCAM	0.11	205	172	1.0	5
CCAM	0.12	205	172	1.0	5
CCAM	0.127	205	172	1.0	5
CCAM	0.142	205	172	1.0	5
CCAM	0.16	205	172	1.0	5
CCAM	0.18	205	172	1.0	5
CCAM	0.2	205	172	1.0	5
CCAM	0.25	205	172	1.0	5
CCAM	0.32	205	172	1.0	5
CCAM	0	205	172	1.0	10
CCAM	0	205	172	1.0	10
CCAM	1	205	172	1.0	10
CCAM	1	205	172	1.0	15
CCAM	1	205	172	1.0	15
CCAM	1	205	172	1.0	15
